Monte Carlo Simulation and Method of Custom-Made IEEE 802.11e Routing Multi-Server WiFi Networking Environment

Introduction

Wireless networks are gaining more and more importance in our world. Cellular phones with GPRS/UMTS, Wi-Fi, and WiMAX networks are very common these days, and they share a common feature: they require some sort of backbone infrastructure in order to allow for packets from different communication peers to reach each other. For example, if someone makes a phone call, the conversation will always pass from the cell phone to the operators’ infrastructure, and then to the receivers phone, even if they are both in the same building. Resources would be certainly saved if somehow the cell phones could connect directly to each other.

In an ad-hoc network, all the participants (also called nodes) can communicate directly with their neighbours. Two nodes are considered neighbours if their com- munication devices can reach each other. Nodes wanting to communicate to others that are not neighbours will simply send a message to another node which is located nearer the destination. As so, a centralised infrastructure to establish the connec- tivity is not required, since each node will determine by itself to where it should forward its data. The specification IEEE 802.11 refers to this type of network as Independent Basic Service Set (IBSS).

This chapter is organized as follows. Section 21.2 presents some background information about the previous simulator and about IEEE 802.11e. Section 21.3 describes the features of the new simulator highlighting the modifications we per- formed. Section 21.4 presents the results of the initial simulations, while Section 21.5 presents conclusions and suggestions for future work.

Previous Work

This simulator is based on the one developed at the Instituto de Telecomunicaciones, Laborato ́rio da Covilha ̃, as part of the ISTUNITE project. The purpose of that previous version was to create a trustworthy simulator to be used in the context of ISTUNITE, allowing the study of the interoperability between Wi-Fi and High Speed Downlink Packet Access (HSDPA), [1]. This involved the creation of an HSDPA time-driven simulator and a Wi-Fi event-driven simulator that may be able to run separately or together for the coexistence scenario. In the latter case, there is communication between the two simulators which will run separately in a synchronous way.

The Wi-Fi simulator was initially built only for the infrastructure mode, i.e., an architecture with one access point (AP) and several wireless stations (STAs) attached to it. It can simulate traffic from one STA to the AP and vice-versa, and calculates the throughput (total in the simulation and per unit of time), packet delay (total in the simulation and average), lost packets, retransmissions, and collisions. This computation is oriented to the support of the Quality of Service (QoS), i.e., it implements IEEE 802.11e with four access categories. As a consequence, these met- rics are calculated for each traffic type: voice (VO), video (VI), background (BK) and best-effort (BE).

The IEEE 802.11e standard was conceived to implement Quality of Service (QoS) in IEEE 802.11a/b/g. QoS refers to the way resources are reserved for certain applications, guaranteeing that the most urgent data flows will have higher priority levels. The IEEE 802.11 Medium Access Control (MAC) coordination functions are the Distributed Coordination Function (DCF) and the Point Coordination Func- tion (PCF). They establish the timing and sequence for each station to access the shared medium. The latter is only used in the infrastructure mode, with the AP acting as the coordinator. It provides some basic QoS support, but since it is defined as optional and is more complex and costly to implement, only a few APs support it. The former does not present QoS guarantees at all. To ensure the QoS performance, IEEE 802.11e introduced the Hybrid Coordination Function (HCF), which defines the HCF Controlled Channel Access (HCCA) and Enhanced Distributed Channel Access (EDCA). In EDCA, a Transmission Opportunity (TXOP) is won according to the traffic type, scheduling firstly higher priority traffic, like voice and video. The HCCA is more complex, but allows greater precision in terms of QoS. All these enhancements are fully explained by Prasad [2].

In the EDCA simulator each station (and AP) has four buffers, one for each traffic type. By using an event-driven approach, for each new packet arrived at a machine a new event is generated. The simulator engine uses its internal clock to pick up the next event and pass the corresponding packet to the developed MAC + PHY layers. A more comprehensive description of the lower layers of the simulator can be found in [3].

Overview

The current simulator is an evolution of the previous one. To provide support for multi-hop environment it was necessary to implement the routing algorithm above the already existing Medium Access Control (MAC) plus Physical (PHY) layers, as it is presented in Fig. 1.

After the random placement of all the stations in the field, the simulator deter- mines which can communicate directly. With this data, the selected routing algorithm determines the shortest path from a station to all the others. For these initial tests we chose the well-known Dijkstra’s algorithm, [4], which calculates the least cost path from one node to all the remaining ones. This characteristic allows the routing calculation to take place before the simulation starts, making the routing table available to all nodes since time instant to D0S. Besides this initial calculation, the routing table can be accessed and modified at any time, allowing the use of cross-layer design (i.e., gather information from physical and MAC layers and use it in the routing algorithm) for optimisation purposes. In this work, however, we present no cross-layer at all, and the routing table is not modified during the simulations.

The engine starts collecting events at the beginning of the simulation. When a packet arrives at a wireless machine, a new simulation module verifies if the packet has another destination by checking the two additional fields now included in the packet header: besides the “payload”, “origin station”, and “destination station”, among others, each packet now includes the “initial origin” and the “final destina- tion” fields. If it is found that the destination is another node, the routing table is accessed to determine the next hop, and the packet is added to the machine buffer with the new destination stamped.

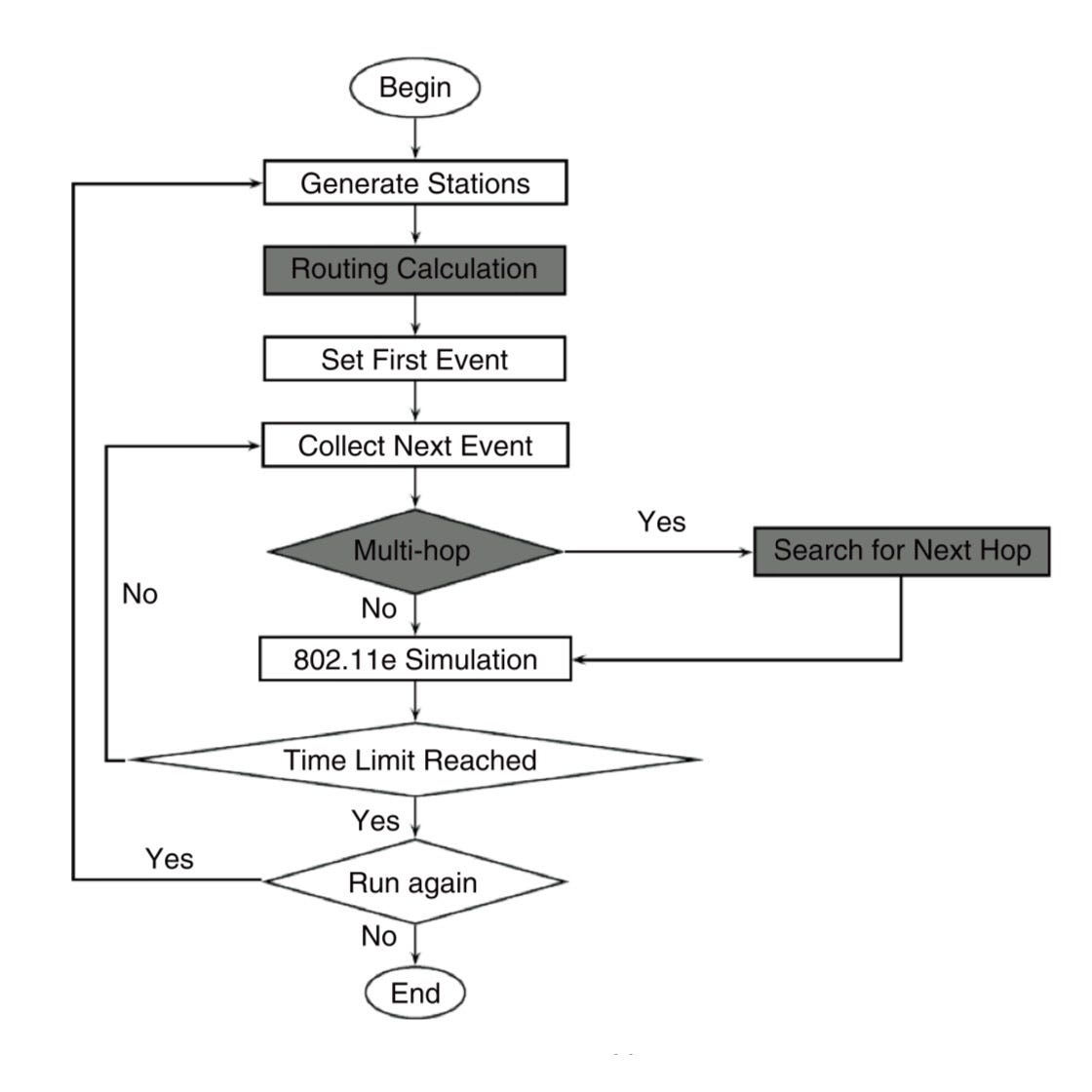

Fig. 1 Multi-hop simulator flowchart, modules added to the previous version are displayed in grey

The simulation will run until the time limit is reached, and will be repeated during a pre-determined number of times. The final output of the simulator is obtained as an average of the results for these simulations.

For the end user, this simulator allows for simulating a network with an unrestricted number of nodes, in any configuration type. By using the chosen routing protocol, it supports connections to every reachable station from its neighbours, allowing for a message to reach any destination. Stations are randomly placed in a field and even if a station is isolated the simulator will still run (unless this station is the source/final destination of a packet, which will terminate the simulation). Several parameters can be tuned by the user to its needs, some of them are presented in Table 1.

Results

In order to verify if the modified simulator was able to simulate a multi-hop environment, we ran a few tests. In the first one we tried to verify if the simulation time was going to affect the end-to-end delay. For this purpose, we considered a fixed

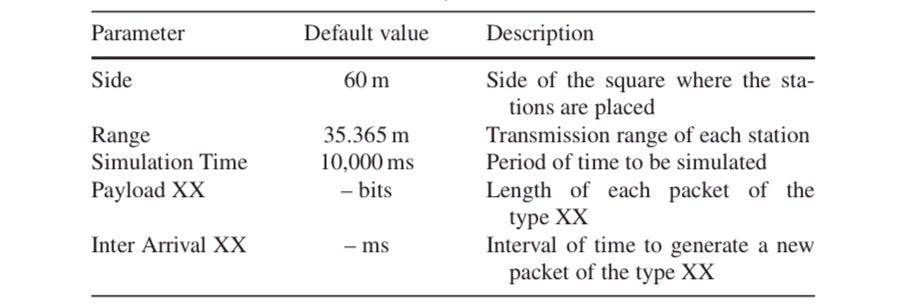

Table 1 Some values that can be modified by the user
Fig. 2 Video traffic being transmitted from station 1 to station 3

configuration of 14 stations, with a video stream being generated from station 1 to station 3, Fig. 2.

The following parameters were used:

  • Video traffic starts at: t D 1 ms;
  • New packet generated each: 10 ms;
  • Simulation ends at: t = 0.1/0.5/1/5/10/15 s;
  • Video payload size: 10,240 bits (each packet will be sent in three fragments).

Figure 3 presents the average delay for each simulation time. As one can observe, the delay is constant with the simulation time, despite the slight differences for the shortest simulations.

Fig. 3 Delay versus simulation time

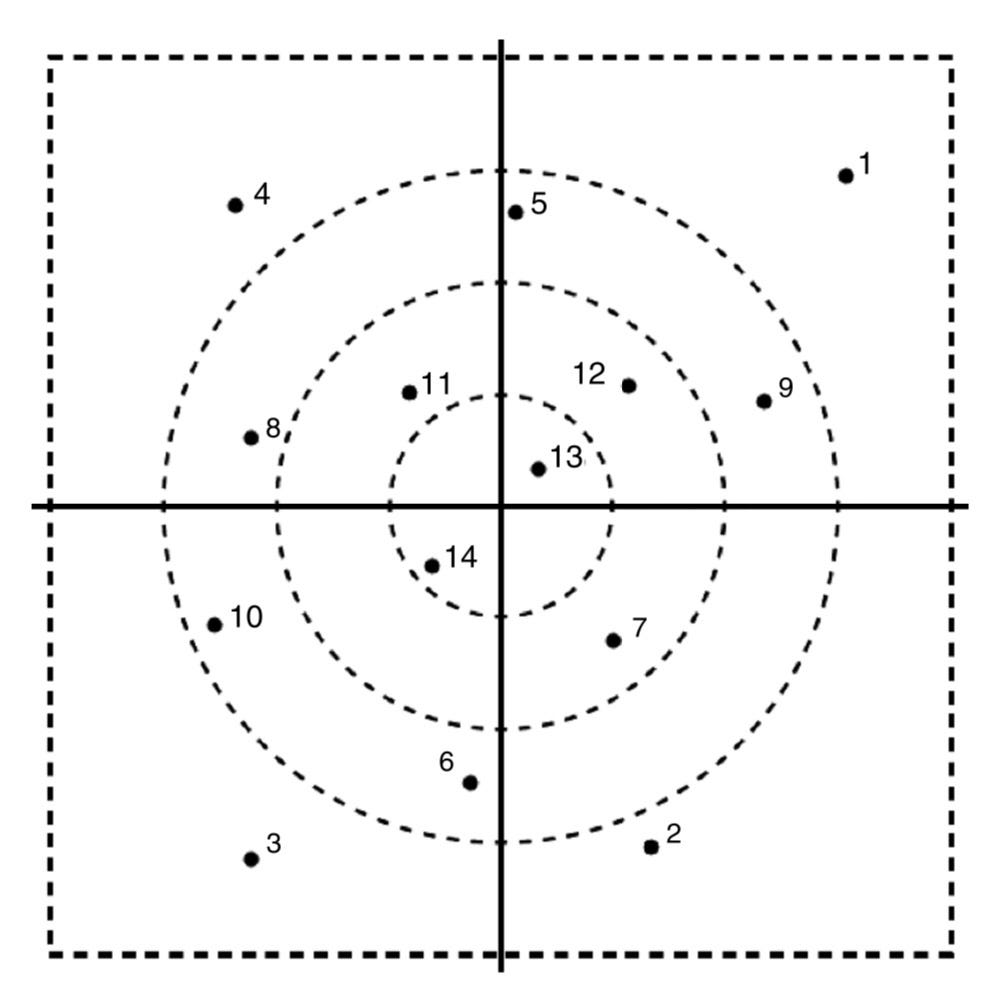

Fig. 4 Station deployment for the tests

After this initial test, 10 s was assumed as a reasonable simulation time, and the subsequent tests were made with this value for the duration.

Besides this, further tests were made to evaluate the influence of multiple streams in the delay and packet loss. For these tests we used the same deployment of stations as in the previous test, Fig. 4.

The inner circle has a radius of 15 m, the next one 30 m, and the outer one 45 m.

2

The square has 120 􏰖 120 m . In the next set of tests we added sequentially video streams between the following stations:

A. From station 1 — 3 ;

B. From station 4 to 2 ;

C. From station 5 to 6 ;

D. From station 8 to 9 ;

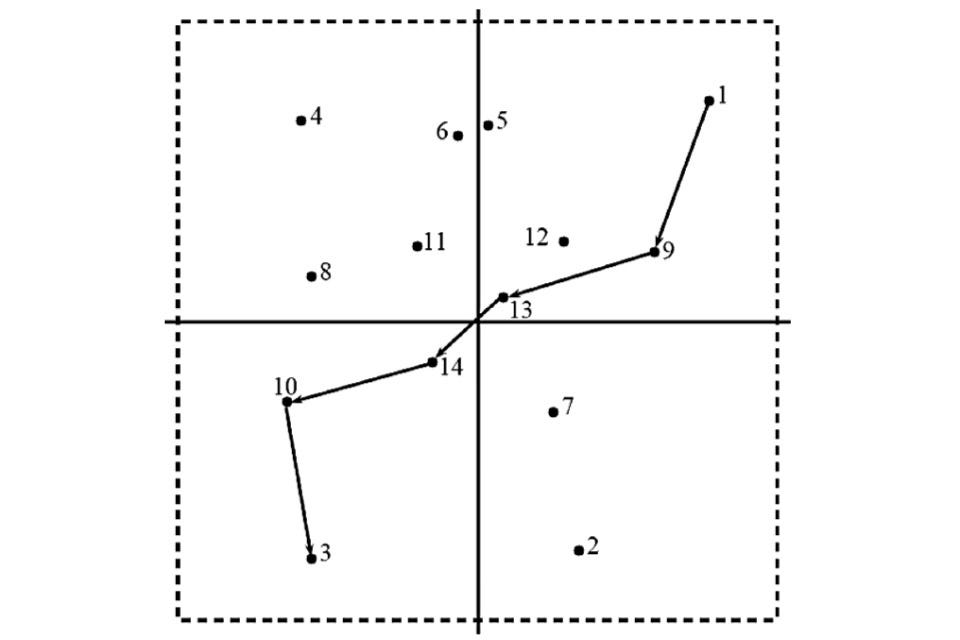

For each of these streams the routing algorithm established the following paths:

Figure 5 presents the results obtained for the delay of video stream from station 1 to station 3. By increasing the number of stations that generate packets, the end- to-end delay (latency) increases.

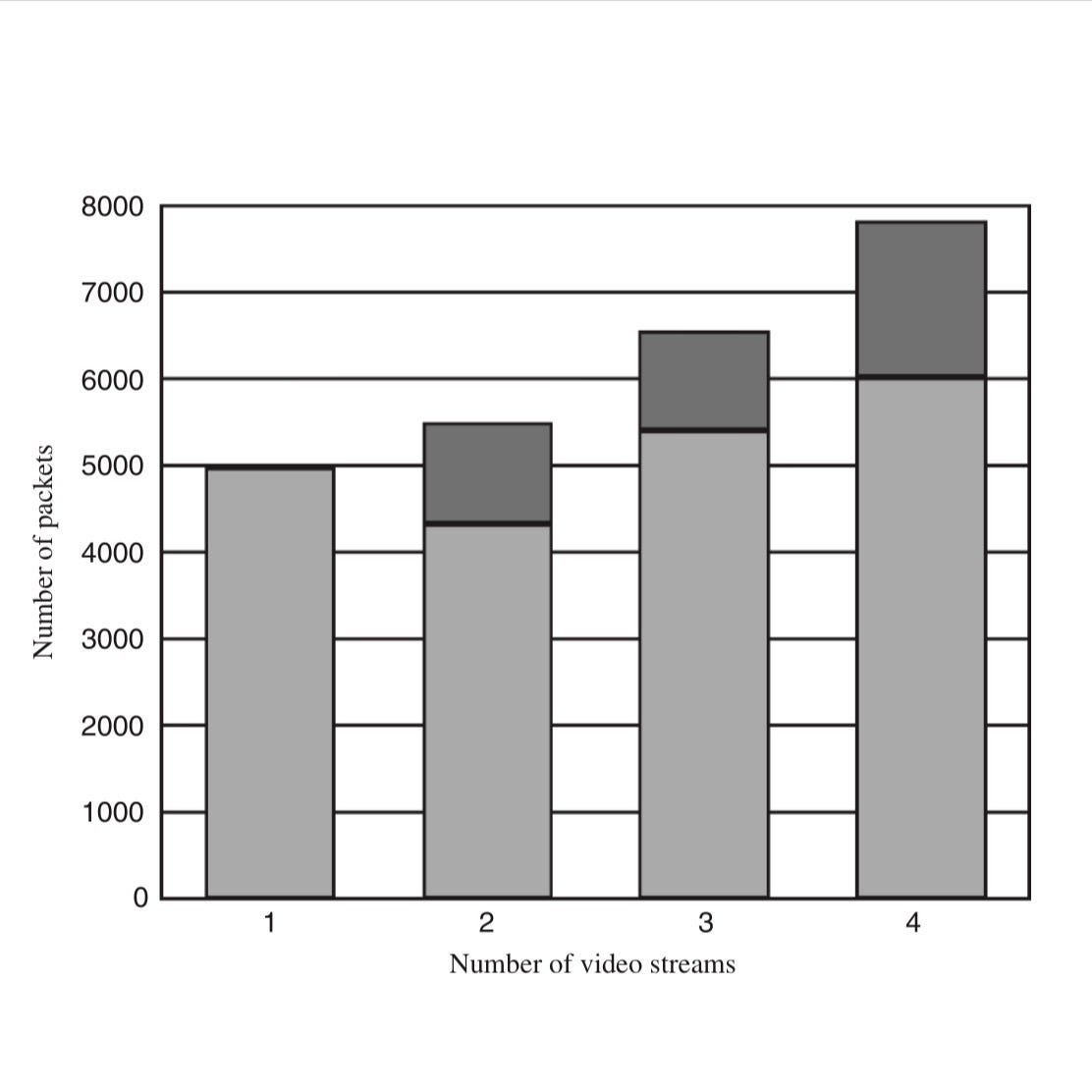

Another interesting metric is the number of lost packets, which is presented as the darker areas in Fig. 6 When the number of packets to be transmitted increases, there are more collisions and packet losses.

One interesting characteristic of this simulator is the possibility of simulating four different types of traffic and their mixtures. By using this feature we produced a new set of tests, keeping the same topology but modifying the type of packets in each stream:

A. Video stream from station 1 — 3 ;

B. Background traffic from station 4 — 2 ;

C. Voice traffic from station 5 — 6 .

Fig. 5 End-to-end delay for video stream 1
Fig. 6 Total of packets received/lost Table

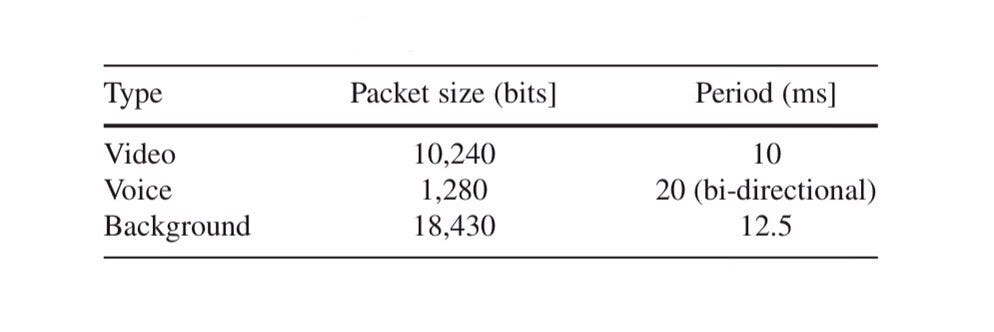

Table 2 Configuration of each traffic type

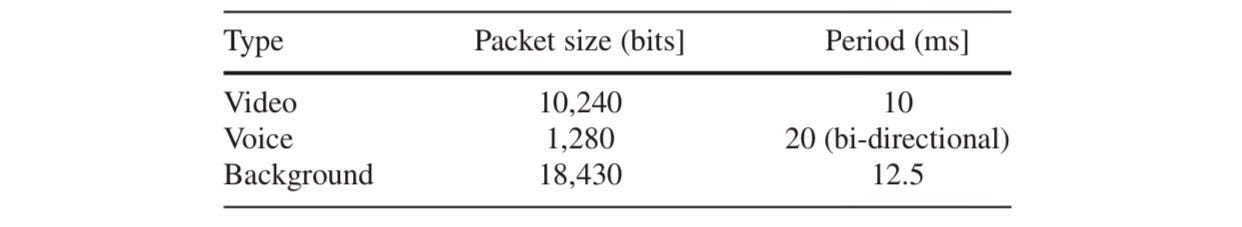

The details for the configuration of each traffic type are presented in Table 21.2 and were taken from Qiang [5], while the results for the number of packets successfully delivered (displayed in light grey) or lost (displayed darker) are presented in Figs. 21.7 and 21.8.

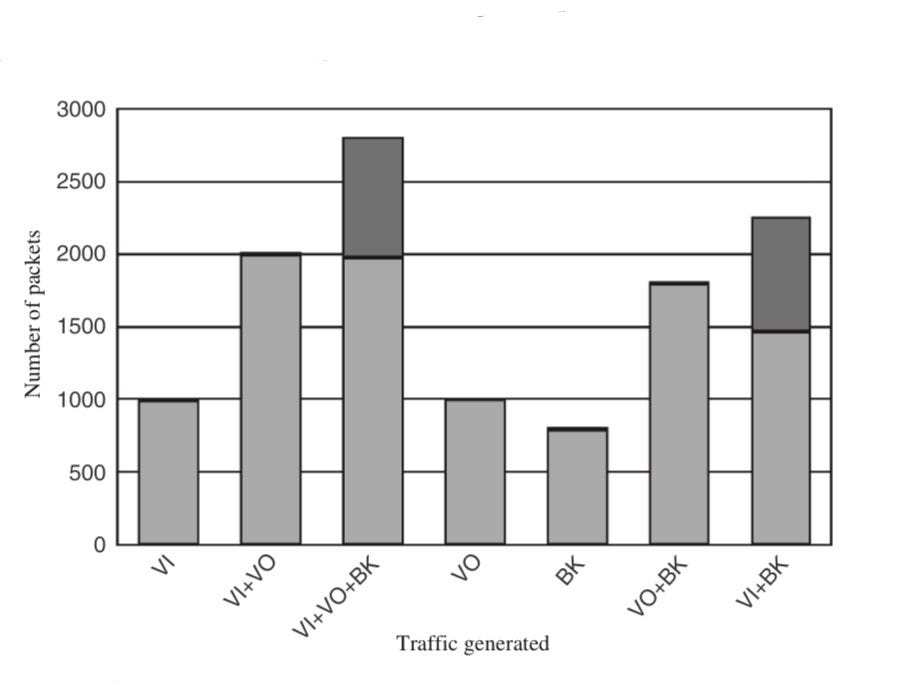

While Fig. 7 presents the results for each packet, Fig. 8 addresses each stream, i.e., the latter only counts a successful packet when this one arrives at the final destination, while the former presents results for the accounting of packets that arrive at any station. For this reason, and looking at the results for the video stream alone (VI), in the former case, 5,000 packets were successfully delivered, while for the latter only 1,000 packets arrived at the final destination. Remember that this stream is transmitted in a 5-hop path, and that the most relevant result is the latter.

With only one stream, the system behaves perfectly, and all of the packets are correctly delivered. This happens because there are no collisions, since the period is longer than the end-to-end delay for every string. However, when more than one type of traffic is being generated simultaneously, the packets start to collide and some of them are considered lost (current policy establishes that a station will drop

Fig. 7 Total of packets received/lost
Fig. 8 Total of packets lost/received at destination
Table 2 Configuration of each traffic type

The details for the configuration of each traffic type are presented in Table 2 and were taken from Qiang [5], while the results for the number of packets successfully delivered (displayed in light grey) or lost (displayed darker) are presented in Figs. 7 and 8.

While Fig. 7 presents the results for each packet, Fig. 8 addresses each stream, i.e., the latter only counts a successful packet when this one arrives at the final destination, while the former presents results for the accounting of packets that arrive at any station. For this reason, and looking at the results for the video stream alone (VI), in the former case, 5,000 packets were successfully delivered, while for the latter only 1,000 packets arrived at the final destination. Remember that this stream is transmitted in a 5-hop path, and that the most relevant result is the latter.

With only one stream, the system behaves perfectly, and all of the packets are correctly delivered. This happens because there are no collisions, since the period is longer than the end-to-end delay for every string. However, when more than one type of traffic is being generated simultaneously, the packets start to collide and some of them are considered lost (current policy establishes that a station will drop a packet after it experiences two collisions). The extension of this problem is larger for background traffic, which can be explained by the largest size of each packet, which will require the fragmentation into four smaller packets. For voice traffic, the delay is very low and it seems that it does not affect the remaining traffic at all. This is due to the small packets generated by this traffic type (no fragmentation required), and because these stations are in line-of-sight, so no multi-hop is needed.

For the next tests, a new deployment was made changing the position of station 6, while keeping all the others in the same position, Fig. 9.

Fig. 9 Station deployment for the next set of tests

The traffic is the same generated before, and as so the routing algorithm com- puted the following paths:

Conclusions

In this chapter we presented the potentialities of a custom-made IEEE 802.11e sim- ulator, with multi-hop capabilities. Based on a previous work that developed a MAC plus PHY layers simulator for this standard, we added above these layers a routing

Fig. 10 Total of packets lost (grey)/received (light grey) at destination

algorithm in order to allow the simulation of traffic among stations that can not communicate directly. We performed some initial tests to verify if the simulator was performing as expected, and the results were encouraging. A few improve- ments for this simulator are being considered, as well as the release of its source code to the scientific community for research purposes. Another possibility cur- rently under study, is to adapt the simulator to allow simulations in the field of Wireless Sensor Networks (WSN) — another research the authors of this chapter are interested in. The simulator was built using the MAC and PHY layers of the standard IEEE 802.11e, and it is intended to replace it by using a MAC layer specification developed specifically for WSN.

--

--

--
